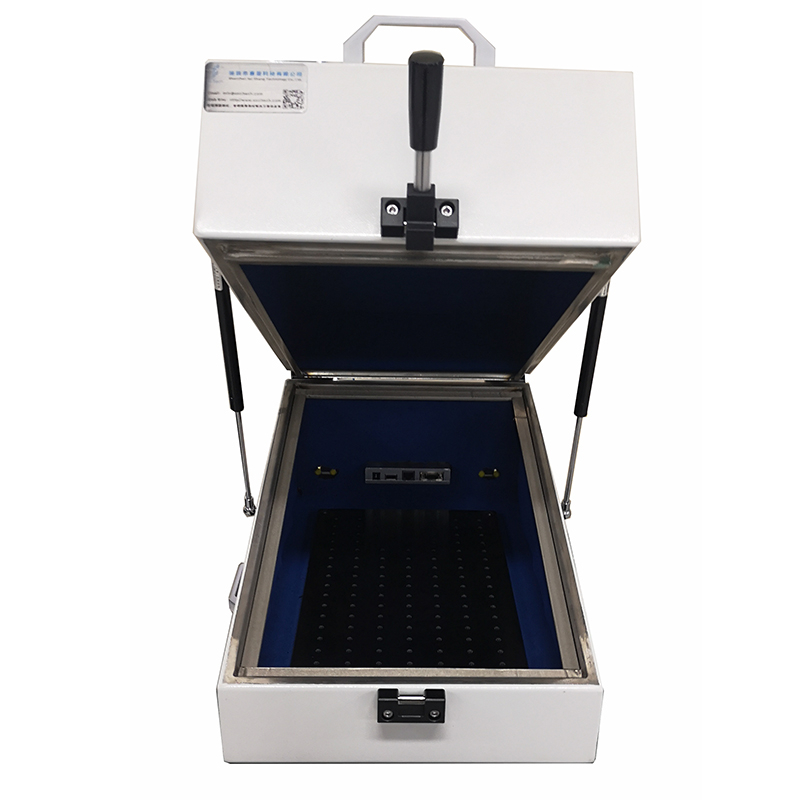

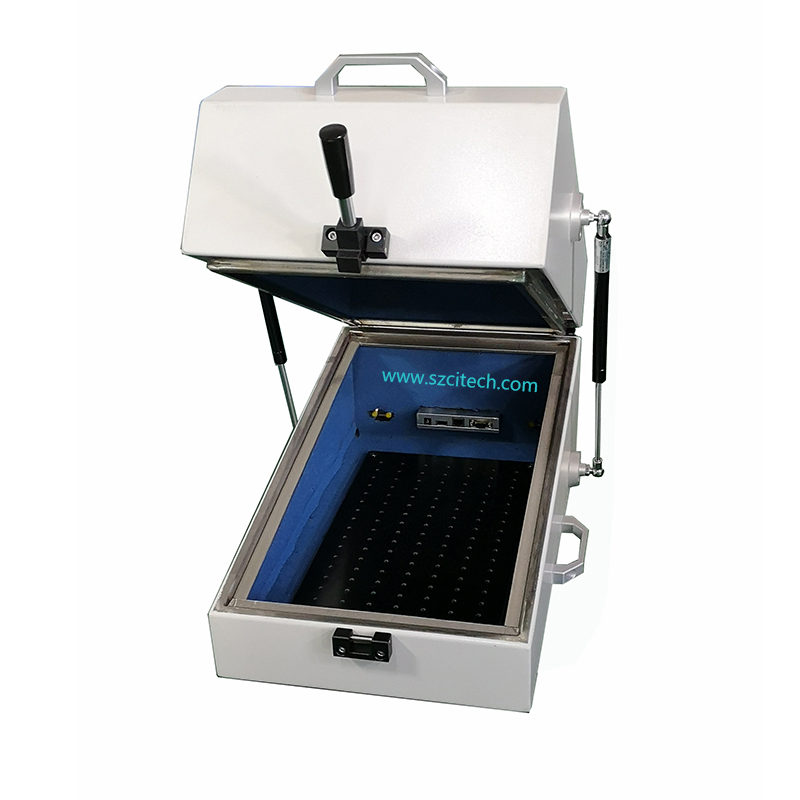

ST-S0035 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With t
The RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
Reliable high RF shielding up to 12GHz
Manual operation
Easily customizable to meet various test needs
Easy to handle
Specification
Outer Dimension inner dimension | （D）520 x（W）320 x（H）260mm （D)460x（W）260x（H）220mm |
Shielding Isolation | 800MHz~8.5GHz>70dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Weight | approx.11kg |
Surface Color | Grey white or coffee( According to the customer request custom color) |
I/O Connectors（According to the customer request） | SMA*4 |
DC*1 | |
RJ45*1 | |
USB*1 DB9*1 |
ST-S0035 RF SHIELD BOX/ 5G/WIFI/zigbee/bluetooth/UWB/ RF shielded box
