★Wide Variety Of I/O Options!
★Great Isolation Up To 18GHZ!
★Models To Fit Any Application!
★Manual operation !
800MHz ~6GHz >90dB;6GHz~12GHz >80dB;12GHz~18GHz >70dB;
+86 18038170771RF SHIELDING TESTING... MADE EASY! Wired & Wireless Device Testing!

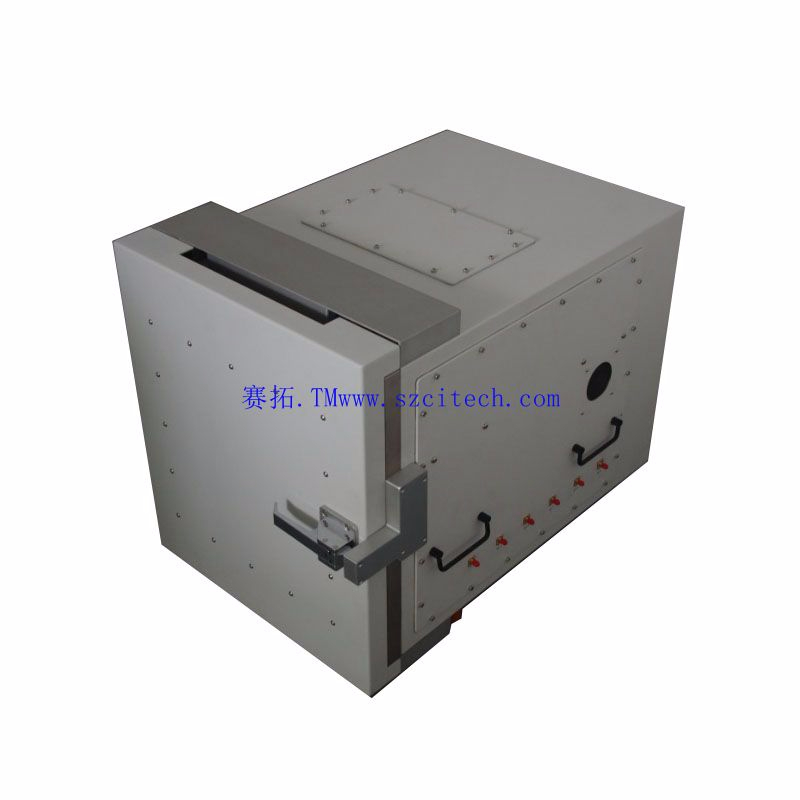

Perfect for 802.11a, b, g, Wireless LAN, Wi-Fi, Wi-Max, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth?, Blade Servers, Cards, WAP’s, Production Testing, Quality Assurance and other Wireless Devices Testing or just as a RF Shielded Test Enclosure
Features
★Wide Variety Of I/O Options!
★Great Isolation Up To 18GHZ!
★Models To Fit Any Application!
★Manual operation !
We realize that the connectors, options and actual test procedures of one customer are entirely different from that of another. In fact over the past 10 years we have never had an identical connector and option configuration between customers! We made it easy with our precision machined I/O output panels to get standard delivery of your "custom configured" enclosure! It goes beyond connectors and options. If you need a special configuration, a different size or door configuration, talk to us! The entire line of STE enclosures has evolved from just that, the needs of people like you!
Specification
Outer Dimension： | (L)700x (W)500 x (H)600mm |
Inner Dimension： | (L)550x (W)400 x (H)500mm |
Material: | metal plate |
Surface Color: | white ( According to the customer request custom color) |
Weight | Apron 50Kg |
Shielding Isolation | 800MHz ~6GHz >90dB;6GHz~12GHz >80dB;12GHz~18GHz >70dB; |
I/O Connectors: | DB9*1,DC2.0*2,USB*2,RJ45*2,SMA*6,AC*1 |
