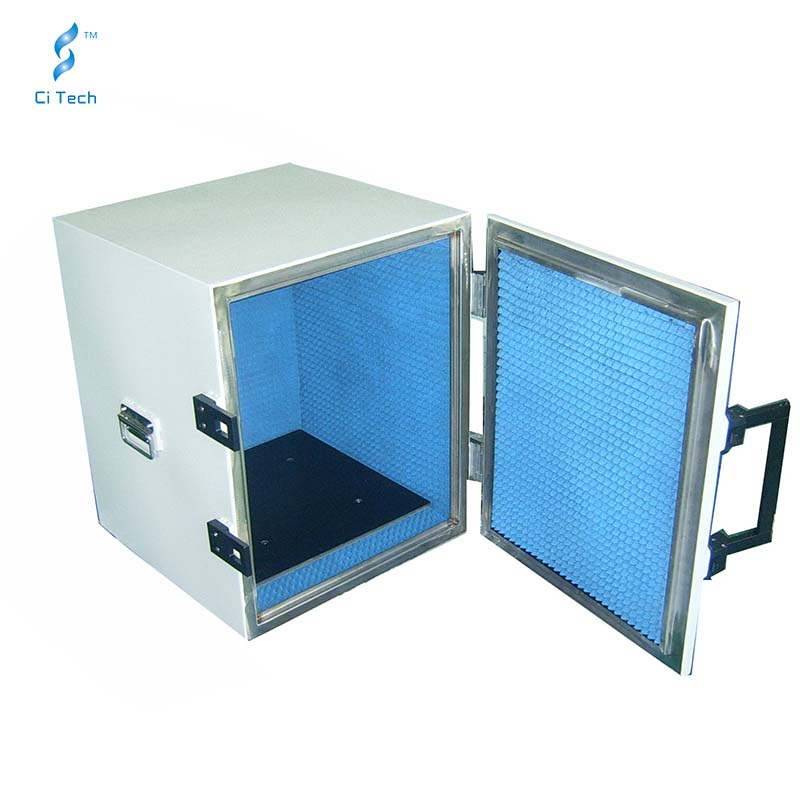

ST-S005 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
1、Reliable high RF shielding up to 12GHz
2、Manual operation
3、Easily customizable to meet various test needs
4、Shock absorbers on lid
Specification
Inner Dimension | 520(D) x 420(W) x 420(H) mm |
Outer Dimension | 600(D) x 500(W) x 500(H) mm |
Shielding Isolation | 800Mhz~8.5GHz >70dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Weight | approx.60kg |
Storage temperature | -10～60°C |
Operating temperature | 0～50°C |
Surface Color | Grey white ( According to the customer request custom color) |
I/O Connectors | N-SMA*2 |
RJ45*1 | |
DC*1 | |
USB*1 |
